Anguilla House Plan
**The File Types are Electronic Files.**
PDF Files: Reproducible, not editable.
CAD File: Reproducible, editable.
Photographed homes may have been modified from original plan.
Plan Specifications:
- Total Living: 1594 sq. ft.
- 1st Floor: 727 sq. ft.
- 2nd Floor: 867 sq. ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Exterior Wall: 2x6 Frame
- Foundation: Slab
- Stories: 2
- Width: 30' 0"
- Depth: 40' 0"
- Garage Bays: 1
- Garage Load: Front
- Roof Height: 28'6"
- Total Square Feet: 2057 sq. ft.
- Carport: 170 sq. ft.
- Front Porch: 133 sq. ft.
- Lanai: 160 sq. ft.
House Plan Features:
- Front Porch

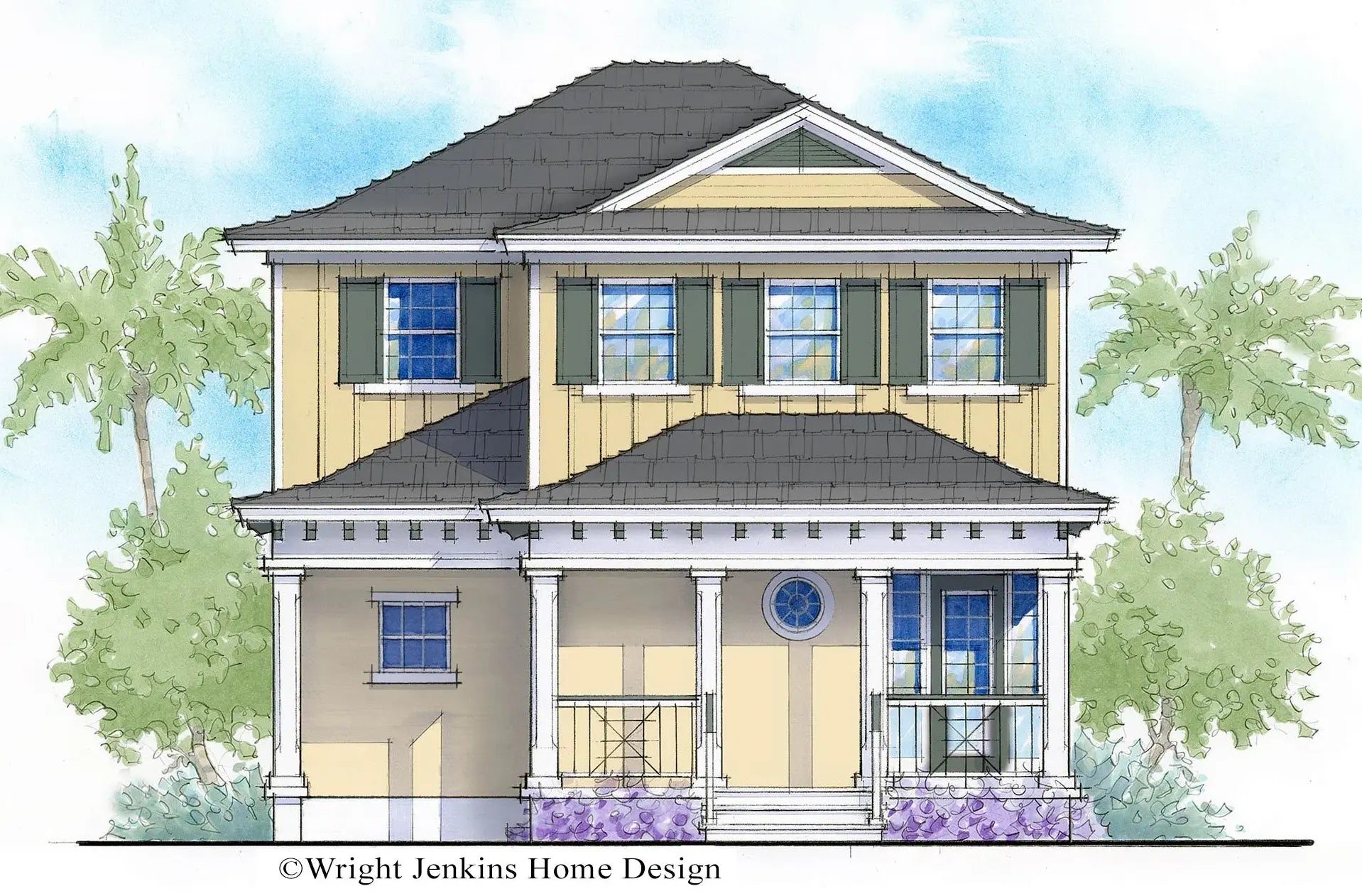

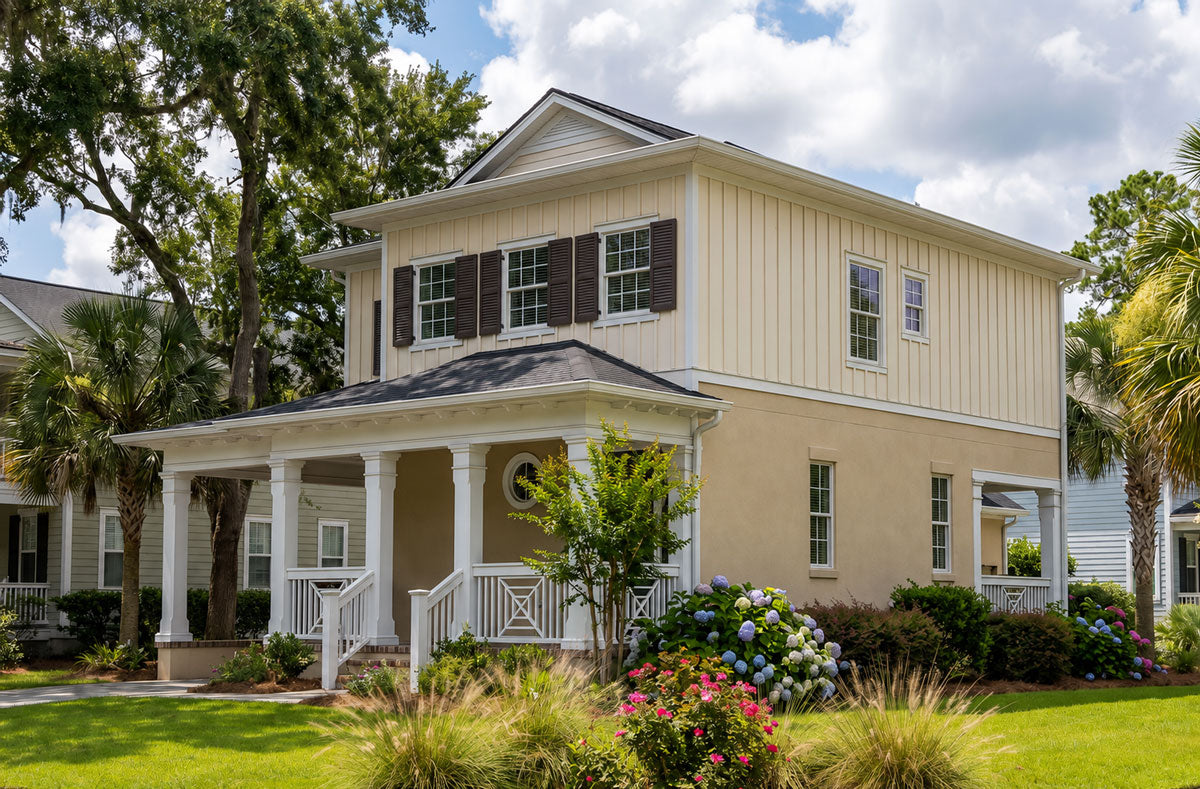

The Anguilla House Plan is a unique coastal cottage that offers plenty of living in a compact footprint. A stucco first floor is framed with decorative roof brackets, chamfered columns and large front porch, while above the second story is accented with board and batten siding and four shuttered windows. The covered Car Port steps up to the elevated and sheltered entry door.

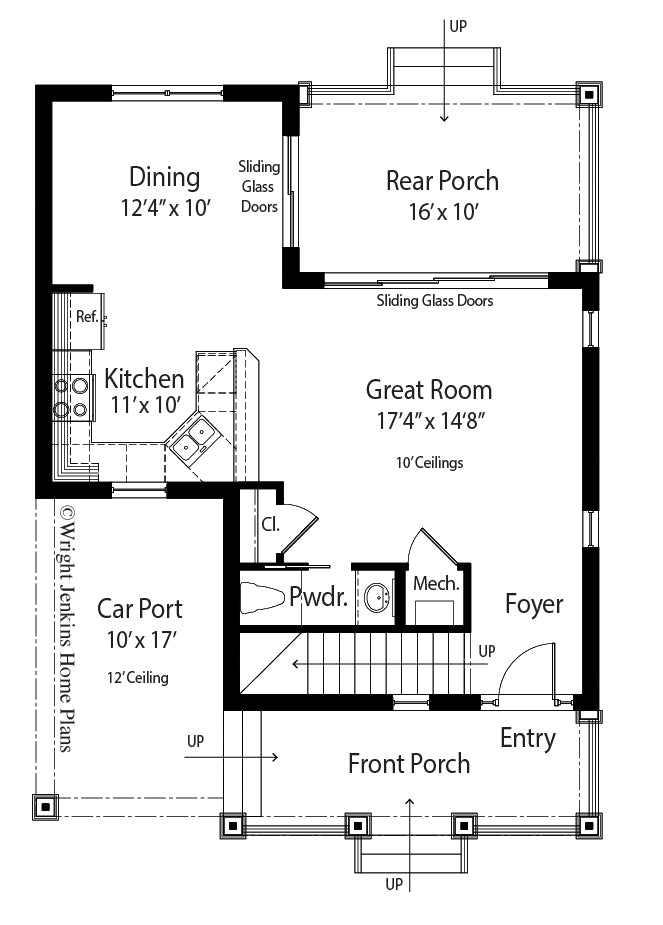

The Foyer opens to 10-foot ceilings and a very spacious Great Room and Dining Room area. A wall-of-glass-sliders open up the Rear Porch and bring the outdoors in. The open Kitchen offers a breakfast bar area for casual dining. A Powder Room next to the entry conveniently serves these public spaces.

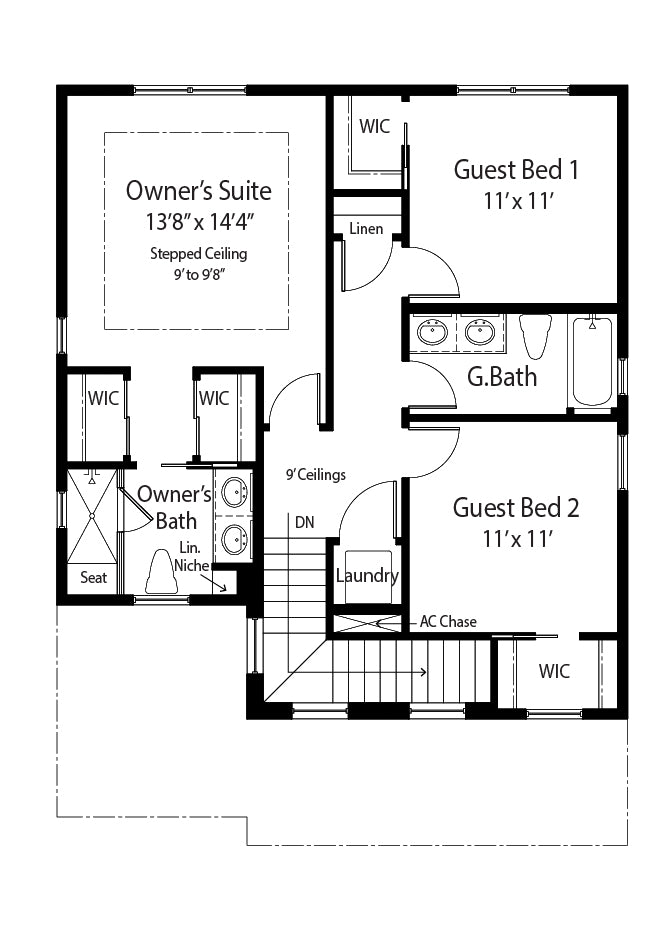

The second floor Owner’s Suite offers and elegant stepped ceiling and large window with views of the rear. A pair of walk-in closets creates the pass thru to the Owner’s Bath. A hallway with Laundry and Linen closets separate the Guest Bedrooms from the Owner’s wing. Each Guest Room enjoys its own walk-in closet.
Designed into the Anguilla House Plan, are exclusive energy-saving techniques that when built to specs, can result in a 50% savings when compared to other new homes, 60-70% when compared to older homes.
